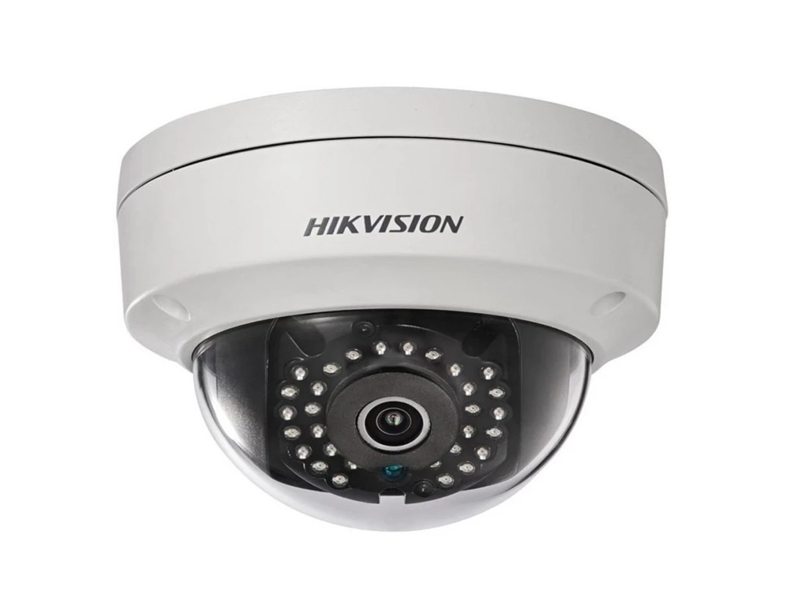

DS-2CD2152F-I
Price:
$ 120.00
Sharing
Product link copied — share this deal!
Product Details
| Image Sensor | : | 1/3" Progressive Scan CMOS |
| Max. Resolution | : | 2560×1920 |
| Min. Illumination | : | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | : | 1/3 s to 1/10,000 s |
| Day & Night | : | IR cut filter with auto switch |
| Angle Adjustment | : | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355° |
| Lens | : | |
| Lens Type | : | 2.8mm, 4mm, 6mm @ F2.0 |
| Angle of adjustment | : | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355° |
| Lens Mount | : | M12 |
| DNR | : | 3D DNR |
| Wide Dynamic Range | : | DWDR |
| Image | : | |
| : | Image Parameters Switch | |
| : | Image Settings | |
| : | Day/Night Mode | |
| : | Wide Dynamic Range (WDR) | |
| : | Image Enhancement | |
| Video | : | |
| Main Stream | : | 50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720) |
| Sub-Stream | : | 50Hz: 30fps (352×288, 640x480) 60Hz: 25fps (352×240, 640x480) |
| Video Compression | : | H.264+/H.264 / MJPEG |
| Video Bit Rate | : | 256 Kbps ~ 16 Mbps |
| H.264 Type | : | Main Profile |
| Nework | : | |
| Protocols | : | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Network Storage | : | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | : | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal login |
| General Function | : | Password Protection, Privacy Mask, IP Address Filtering, Anonymous Access |
| Wi-Fi | : | |
| Wireless Standards | : | IEEE802.11b, 802.11g, 802.11n |
| Web Browser | : | 2.4 GHz ~ 2.4835 GHz |
| Transfer Rates | : | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | : | 50 meters (The performance varies based on actual environment) |
| Interface | : | |
| Ethernet Interface | : | 1 RJ45 10M/100M Ethernet port |
| On-Board Storage | : | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Alarm Interface | : | 1x alarm I/O *only for –S models |
| Audio Interface | : | 1x audio I/O *only for –S models |
| General | : | |
| Power | : | DC12V ± 10%, PoE (802.3af) |
| Dimension | : | Φ111 × 82 |
| Weight | : | 500g |
| Approval | : | |
| Protection | : | IP66, IK10 |
| Code | : | PCC-150 |
